Ametek 1196878-00 Motor

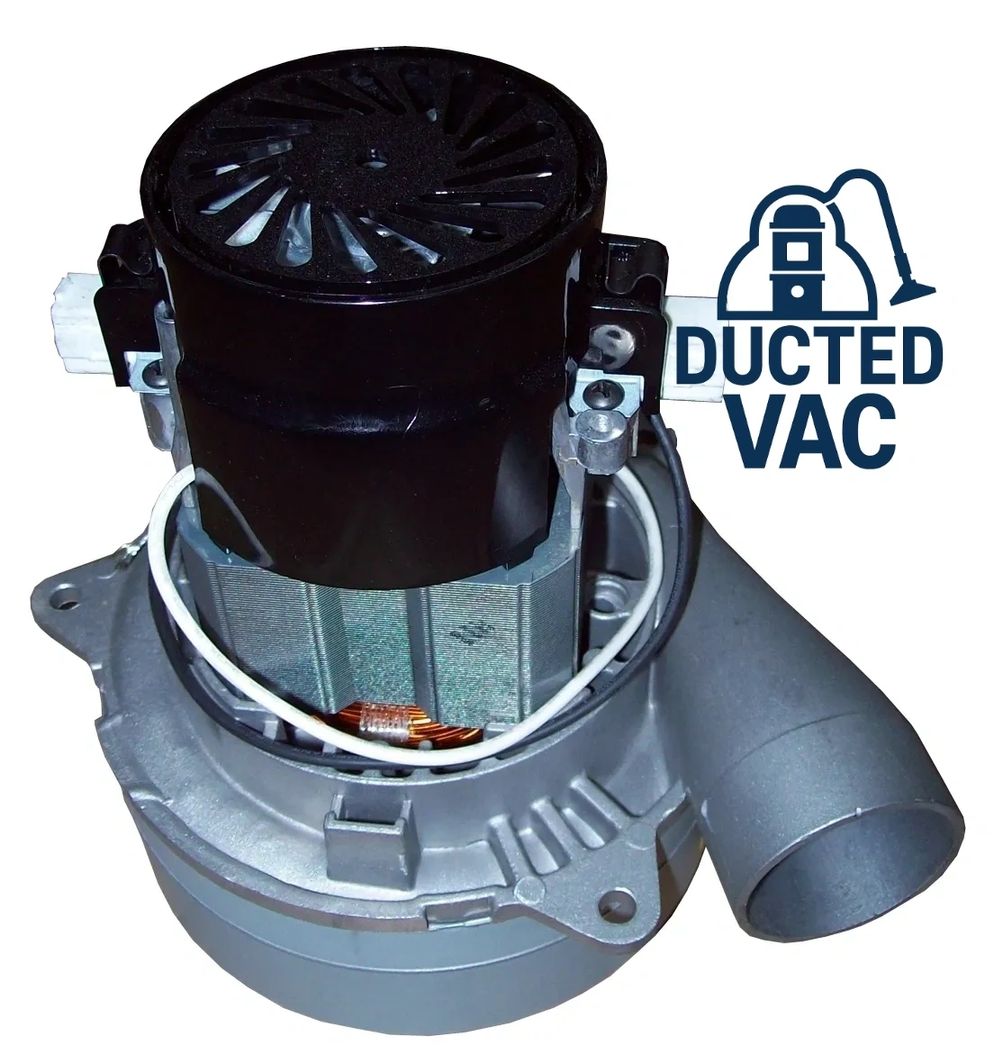

Ametek 119678-00 2-Stage Tangential Bypass Vacuum Motor

Boost the performance of your ducted vacuum system with the Ametek 119678-00 Motor. Engineered for powerful suction, long-lasting durability, and seamless compatibility, this robust motor is the perfect replacement or upgrade solution for a wide range of ducted systems.

High-Performance Suction

• Sealed Vacuum: Generates up to 220 inches of H₂O suction power.
• Airflow: Delivers 107 CFM for efficient, deep cleaning.
• Voltage: 240V motor optimised for ducted systems.
• 2-Stage Tangential Bypass: Designed for high efficiency and reliability.

Durable Construction

• Frame Size: 5.7" (145mm) ventilated frame for cooling and performance.
• Bearings: Equipped with double ball bearings for extended motor life.
• Discharge Options: Available in die-cast or thermoset horn versions.
• Heavy-Duty Build: Designed with quality components and easy grounding provisions.

Wide Compatibility

The Ametek 119678-00 Motor includes a conical base, making it compatible with a variety of leading ducted vacuum brands including:

• AussieVac
• Beam
• AstroVac
• Electron
• Cleanstar
• Imperium
• And more

This versatility makes it the ideal motor for both replacements and system upgrades.

Specifications

Why Choose the Ametek 119678-00 Motor?

This motor combines exceptional suction strength, heavy-duty reliability, and broad system compatibility, making it one of the most trusted choices for ducted vacuum systems. Whether you are replacing an existing motor or upgrading, the Ametek 119678-00 ensures consistent cleaning power and long-term performance.

Order now and enjoy premium vacuum performance backed by Ametek’s industry-leading technology.
